Von Duprin 5100 Series DataSheet

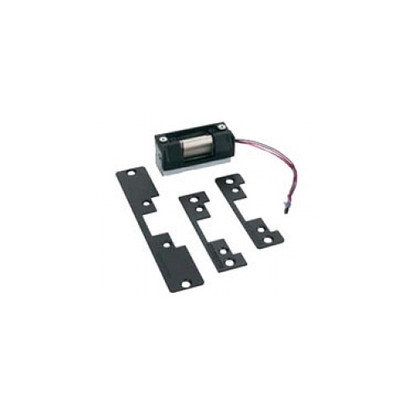

The Von Duprin 5100 electric strike has been designed and manufactured to meet the needs of locksmiths and security professionals. This easy-to-install electric strike was created for medium-duty applications, specifically to control traffic flow through interior and exterior openings in retail and commercial environments. The 5100 electric strike is designed for maximum flexibility. It comes standard with three faceplates for hollow metal, wood or aluminum frames in every box. The internal 12/24VDC solenoid provides additional versatility. While the adjustable keeper improves fit for applications with weather stripping or tight door preps. Furthermore, power failure mode is field selectable fail-safe/fail-secure. With multiple faceplates and flexible options, the 5100 provides added convenience by ensuring the right parts are in the box to get the job done. This reduces labor expense and reduces return trips to the job site. The 5100 was developed with Von Duprin’s high standards and engineering expertise. Its heavy-duty construction and tamperresistant design is able to withstand abuse. The 5100 is tested to over one million cycles and provides 1300 lbs holding strength.

Features:

• Three faceplates standard in every box
• 12/24 dual-voltage
• Fail-safe/fail-secure § Adjustable keeper
• Internal solenoid
• Non-handed § Backbox depth of 111⁄16"
• Keeper depth of 1 ⁄2"
• Mounting tabs § Retrofit kit
• Illustrated installation instructions
• Tamper resistant
• One year electrical product warranty
• Continuous duty operation § Heavy duty construction
• Meets BHMA A156.31, Grade 1 for endurance and dynamic strength, and Grade 2 for static strength
• Static strength 1300 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000,000 cycles

Specifications:

• Finish: sprayed aluminum/black
• Selectable for FS or FSE
• 12 or 24V DC
