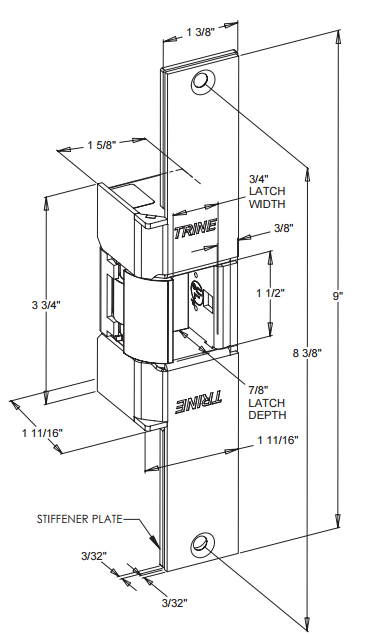

Frame Preparation

Features:

• Superior Strength -- 2,000+ lbs UL® tested.
• Superior Life -- Durability of 1,000,000+ life cycles
• Superior Application - Outdoor UL^® rating allows the strike to be used anywhere - especially good for gates.
• Fail secure/Fail safe field reversible on DC units.
• Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
• Left and Right handing is field reversible.
• Fits Folger Adams 310-2 cutout.
• For new or replacement installations in metal or wood jambs,
• Use with mortise exit devices, mortise locks without dead bolts and cylindrical locksets with up to 7/8'' throw.
• Based on 1/8 door gap
• Latch Shim Kit provided for horizontal cavity adjustment
• Your go anywhere strike!

Specifications:

• UL® Listed 10C - Fire-rated - Class A, 3-hour, single swing door
• UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
• BHMA 156.31 2001, Grade 1
• NYC MEA 79-01-E
• Finish Available: Satin Stainless Steel

EN Series Electrical Characteristicss:
