Dimensions

Metal Frame Prep

Wood Frame Prep

For new or replacement installation in wood, metal or aluminum frames. Use with cylindrical locksets having up to 5/8” throw, based on 1/8” door gap. 60% LESS CUTTING of Frame Face for ANSI 4 7/8” pre-prep frames.

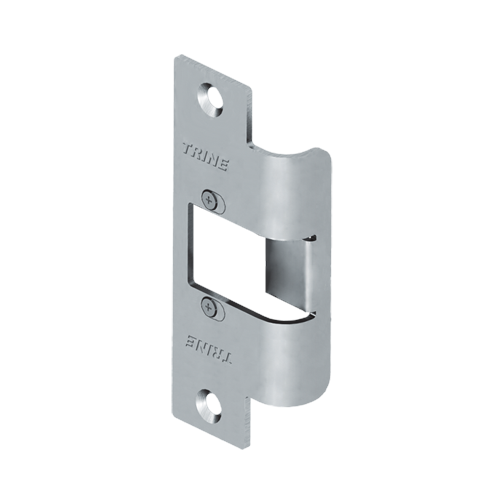

478 Features:

• No ugly black ramps!
• This faceplate as been upgraded with a 1/8” Horizontal adjustment feature.
• BHMA Grade 1 - Your ANSI Solution.
• 60% less cutting of the frame.
• Finish: Satin Chrome
