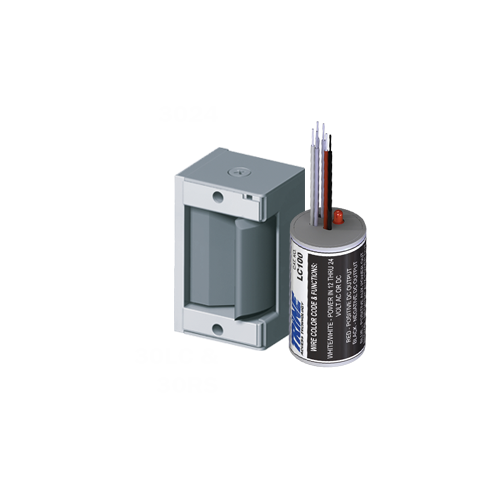

Wiring Instructions

Features

• GRADE 1
• 500,000 + life cycles
• 1,500 + lbs. holding force
• Dynamic Force 70 ft/lb.
• Solid stainless steel latch and in the device body.
• Accepts a bolt with a up to 5/8” throw
• Non-handed Unit
• Fail secure - standard action (unlocks with power)
• Mechanism spacers increase cavity depth up to 1/8”
• Voltage 12/24 AC/DC
• With a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty

Specifications

• BHMA - A156.31, 2001
• BHMA Grade 1
• BHMA Grade 2

30LC Mechanism Electrical Characteristics:
