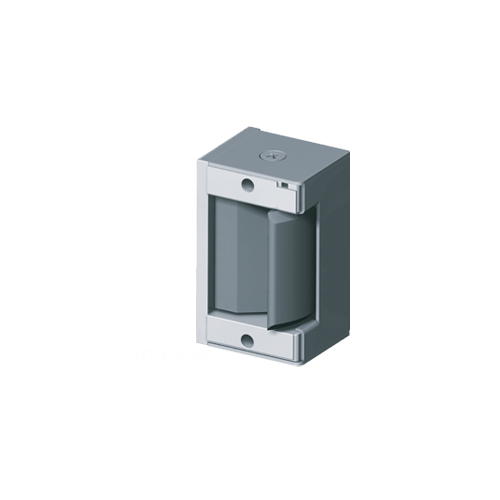

- Trine 3000 Series 1'' Electric Strike
Product Description
DimensionsThe flexibility to stock mechanisms separately from face plates.
Features
- GRADE 1 Electric Strikes
- 500,000+ life cycles • 1,500+ lbs. holding force
- Dynamic Force 70 ft/lb
- Solid cast stainless steel latch
- Accepts a bolt with a up to 5/8” throw
- Micro solenoid assembly
- Non-handed
- Fail secure standard (unlocks with power)
- Latch spacer increases cavity depth 1/16"
- Available in 12 or 24 volts DC
3012/3024 Mechanism Electrical Characteristics:
| Item | Voltage | Current/Amps | Ohms (?) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|---|
| 3012 | 12DC | 0.480 | 25.0 | Intm. | Silent | Blue |
| 3024 | 24DC | 0.240 | 100.0 | Intm. | Silent | White |
3000 Unit Specifications:
- BHMA - A156.31, 2001
- BHMA Grade 1
- BHMA Grade 2
