Dimensions

2000 Series Features

• Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
• 1/8” Horizontal Latch Adjustment.
• Releases Under Slight Door Pre-Load.
• 500,000 Life Cycles -- Holding Force - 900 lbs.
• Solid Cast Latch - Chrome Plated.
• Non Handed Operation.
• Screw Terminals - Quick Connection.

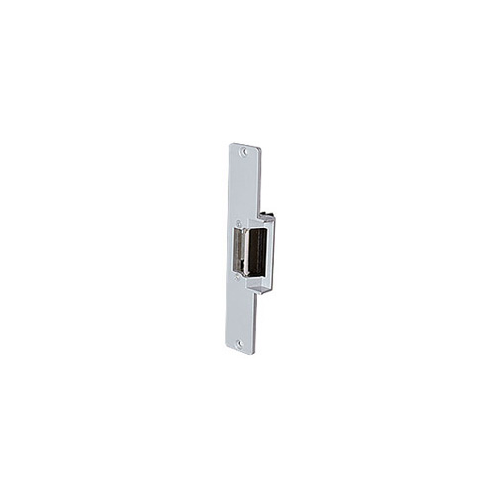

2002 Specifications

For use in new or replacement aluminum or hollow metal jamb installations. Auxiliary lever ramps for use with locksets containing dead-locking levers. Use with latch bolts having up to 5/8” throw, Based on 1/8” door gap.

Face Plate 7-15/16” x 1-7/16 -- Auxiliary Ramp Height 2-7/8” -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”

2000 Series Electrical Characteristics:

Adjustable Latch
