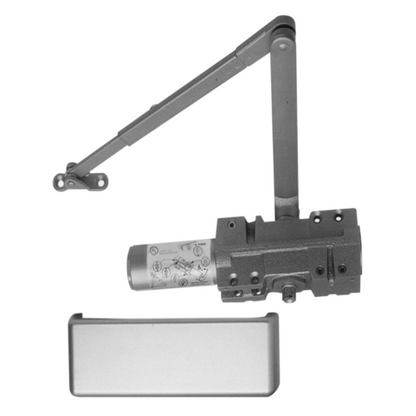

A power adjustable door closer that features a cast iron body and is ANSI A156.4 Grade 1 and ANSI A117.1 compliant. It is also UL Listed. Manufactured under ISO 9002 guidelines, this ADA (Handicap) multi-sized closer has adjustable Spring Power for a range of sizes which can be adjusted after installation.

Features:

• Cast iron body
• ANSI A156.4, Grade1 and
• ANSI A117.1 compliant
• UL listed
• ADA (Handicap) multi-sized closers with adjustable Spring Power for a Range of sizes, adjustable after installation
• Manufactured under ISO 9002 guidelines

Functions

• Tri-Style installation: installs regular, parallel arm or top jamb.
• Non-handed: installs on either side of door.
• Adjustable sweep and latch speeds: separate valves to adjust each speed.
• Adjustable backcheck: standard.
• Adjustable delayed action closing option available.
• Installs 3 ways: regular arm, parallel arm and top jamb.
• Cover: high impact, UL listed molded plastic full cover.
• Power of closer can be adjusted to conform to the requirements of the American with Disabilities Act (ADA) and as outlined in ANSI A 117.1
• Specifications for Making Buildings and Facilities Accessible to, and Usable by the Physically Disabled.
• Door Opening: regular arm 120°, parallel arm 180° and top jamb 120°.
• Finish Available: Aluminum

Crossover Footprint

The following manufacturers’ products fit the same physical footprint as our 441 BC Series Door Closer.

• LCN 4041
• Norton 7500/7700
• Dorma 8916
• Dor-O-Matic SC70
• SARGENT 351
• Yale P400/4400
• RYOBI D3530
