Installation Instructions

Steel cement case, Horizontal adjustment; adjusting screw on arm makes it possible to align door horizontally, towards or away from frame and lock in desired position. Vertical adjustment: Door may be raised or lowered, through the use of shims, adjustable spring tension and closing speed.

Application

• Double Acting, Non-handed
• Interior or Exterior^ Doors
• Weight to 200 lbs.
• Sizes up to 4'0" x 8'6"

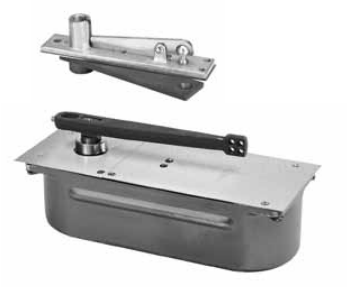

Product Description & Features

• Centering arm with adjustment screws in faces of door (critical for double acting doors)
• Adjustable closing speed valves for each direction of door swing
• Mechanism returns door to center
• Maximum door opening 103°
• Auxiliary door stop required, overhead or floor type
• Steel cement case
• Standard top pivot: #340 included
• Not allowed for fire rated doors
• Furnished with wood and machine screws
