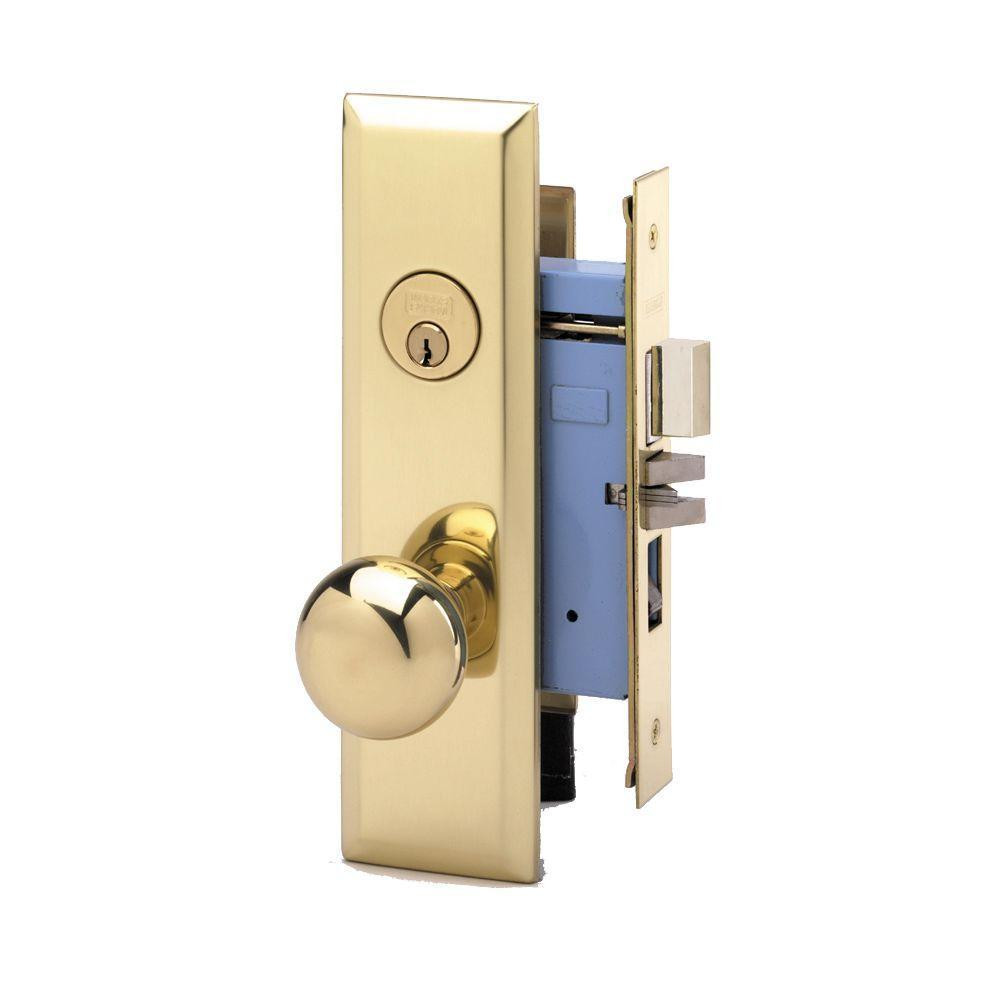

Marks USA New Yorker Grade 1 Mortise Lockset 7NY10A

Marks USA
$190.60


Marks 7 Series Mortise Locksets feature a high pressure cast Zamac body with a baked enamel finish to resist corrosion, cast alloy 1" throw deadbolt for strength, and a flexible face plate that may be installed flat or with a 3 degree bevel. The 7 Series are available with a variety of different knobs, levers, roses and plates making these efficient mortise locksets a great choice for commercial applications when grade 1 fire rated locksets are not required.

Features:

  • Thru-bolted screwless knob/lever plate assemblies
  • Independent spring loaded captivated spindles
  • Reversible mortise lock 2-3/4" backset
  • Lever support springs
  • Lock front:1-1/4" x 8"
  • Dimensions: Ext: 10" H x 2-3/4" W, *Int: 7" H x 2-1/4" W
  • Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
  • Bolt throw: Cast alloy full 1" throw
  • Latch throw: 5/8" (anti-friction)
  • Case: High pressure cast Zamac,baked enamel finish
  • Front: 1-1/4" x 8", Flat or 3° bevel
  • Hubs: 9/32" on square steel with security separator



Watch "Product Videos" Below

Read more

Description


Marks 7 Series Mortise Locksets feature a high pressure cast Zamac body with a baked enamel finish to resist corrosion, cast alloy 1" throw deadbolt for strength, and a flexible face plate that may be installed flat or with a 3 degree bevel. The 7 Series are available with a variety of different knobs, levers, roses and plates making these efficient mortise locksets a great choice for commercial applications when grade 1 fire rated locksets are not required.

Features:

  • Thru-bolted screwless knob/lever plate assemblies
  • Independent spring loaded captivated spindles
  • Reversible mortise lock 2-3/4" backset
  • Lever support springs
  • Lock front:1-1/4" x 8"
  • Dimensions: Ext: 10" H x 2-3/4" W, *Int: 7" H x 2-1/4" W
  • Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
  • Bolt throw: Cast alloy full 1" throw
  • Latch throw: 5/8" (anti-friction)
  • Case: High pressure cast Zamac,baked enamel finish
  • Front: 1-1/4" x 8", Flat or 3° bevel
  • Hubs: 9/32" on square steel with security separator



Watch "Product Videos" Below

Videos

Additional info

Width: 12.00
Height: 6.00
Depth: 6.00
