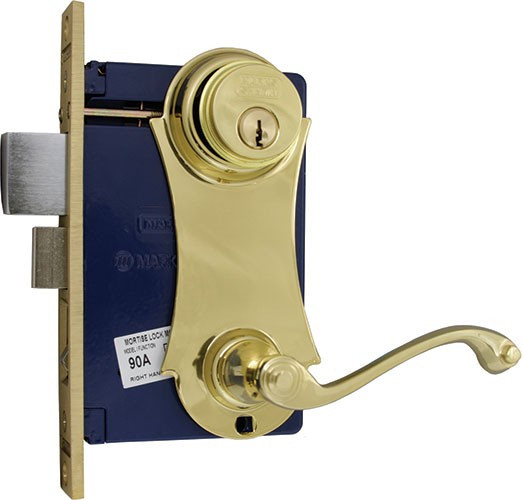

Marks - Ornament Unilock Lever/Plate Mortise Lockset 9215AC/3
  • Marks - Ornament Unilock Lever/Plate Mortise Lockset 9215AC/3

Marks lock - Ornament Unilock Lever/Plate Mortise Lockset 9215AC/3

$175.00

Product Description

Marks USA has been a primary manufacturer of Ornamental Iron Storm Door locks for many years. During that time, many innovative improvements were developed to increase the reliability and ease of installation. Innovations includes the "Uni-Lock" model with single screw assembly, elimination of threaded swivel spindles in favor of the more secure thru-bolted design, helper springs in lever-rose sets, and steel hubs for greater endurance.

Features:

  • Lifetime Mechanical Warranty
  • Thru-bolted, Solid Brass Trim
  • Made in our own plant in Amityville, New York, USA
Specifications:
  • Door thickness: 1"
  • Series 9 lock body, Backset: 2-1/2"
  • Reversible mortise lock 1" bolt, 1/2" latch projection
  • Lock front: 1" x 7-1/8"
  • Thru-bolted solid brass trim assemblies
  • Spring loaded captivated spindles
  • Cylinder: Marks “A” keyway, 5 pin w/ 2 keys; keyed alike-6

How To Determine Door Hand:

Figure 1 (Knob Above Cylinder)


Right Hand Reverse:

  1. Facing door from outside.
  2. Pull Door to open.
  3. Hinges on the Left hand side.
  4. Konb and Cylinder on the Right hand side.
  5. Knob Above the Cylinder.

Left Hand Reverse:

  1. Facing door from outside.
  2. Pull Door to open.
  3. Hinges on the Right hand side.
  4. Konb and Cylinder on the Left hand side.
  5. Knob Above the Cylinder.

Figure 2 (Knob Under Cylinder)


Left Hand Reverse:

  1. Facing door from outside.
  2. Pull Door to open
  3. Hinges on the Left hand side.
  4. Konb and Cylinder on the Right hand side.
  5. Knob Under the Cylinder.

Right Hand Reverse:

  1. Facing door from outside.
  2. Pull Door to open
  3. Hinges on the Right hand side.
  4. Konb and Cylinder on the Left hand side.
  5. Knob Under the Cylinder.



Product Reviews

Write Review

This product hasn't received any reviews yet. Be the first to review this product!

Quantity:
SKU:
9215AC/3
Weight:
5.00 LBS
