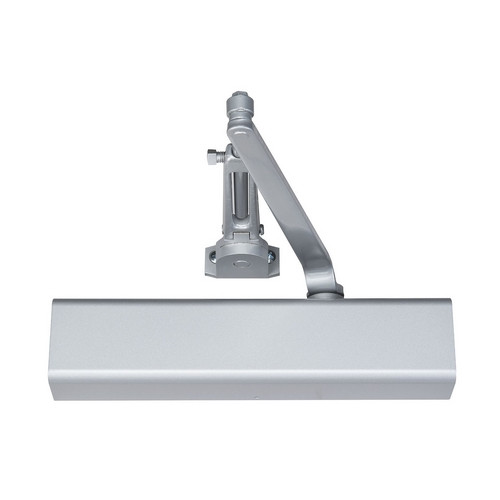

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. Door Closer is made of cast aluminum that can be used in indoor or outdoor applications, They are surface-mounted and projet no more than 2 1/8'' from the surface to the door.

Typical Applications

Specifications

• Adjustable size 1-6
• Grade 1
• Tri-style packaging standard - regular arm, top jamb and parallel arm mounting
• Non-handed
• staked valves
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• Cast aluminum body
• Rack and pinion design
• 1-1/4" diameter piston
• 5/8" diameter pinion journals
• 2-1/8" projection
• All standard arm applications allow doors to swing 180 degrees
• Model 8501 ships with full plastic cover and Model 8301 with Slim Cover
