Arrow E Series Occupancy Indicator Deadbolt

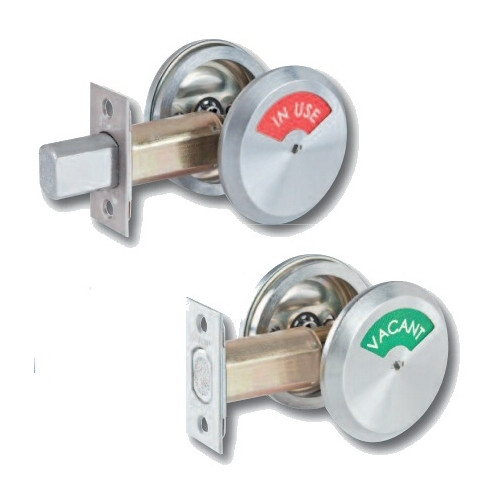

The Arrow Occupancy Indicator deadbolt, available on the E Series Grade 2 Arrow Deadbolt, provides privacy control by utilizing a large external viewing window that signals when the room is occupied. The Arrow Occupancy Indicator uses an emergency key override to unlock the door from the outside in case of emergency. When the deadbolt is in the locked position, an external slot is exposed that provides for the use of the override key. When this key is used, the key is captured in the deadbolt and cannot be removed until the deadbolt is retracted or turned to the “Vacant” or unlocked position. This product is ideal for use in restroom facilities and other areas requiring visual notification of use and secured privacy.

Specifications:

• Deadbolt thrown or retracted by turn unit only
• Provides privacy control by utilizing a large external viewing window that signals when the room is occupied
• Uses and emergency key override to unlock the door from outside in case of emergency
• When the deadbolt is in the locked position, an external slot is exposed that provides for the use of the override key
• When the emergency key is used, the key is captured in the deadbolt and cannot be removed until the deadbolt is extended or turned to the occupied or locked position
• ANSI A156.5 Auxiliary lock
• Supplied with two 1/4" steel thru-bolts
• Deadbolt: 1" throw, solid steel deadbolt with hardened , free spinning, steel pin insert
• 2-3/4" backset
• 1-3/8" - 1-3/4" door thickness

• Finishes Available: (#8) 26D Satin Chrome Plated, (#5) 10B Dark Oxide Bronze, Oil Rubbed, (#7) 26 Bright Chromium Plated
