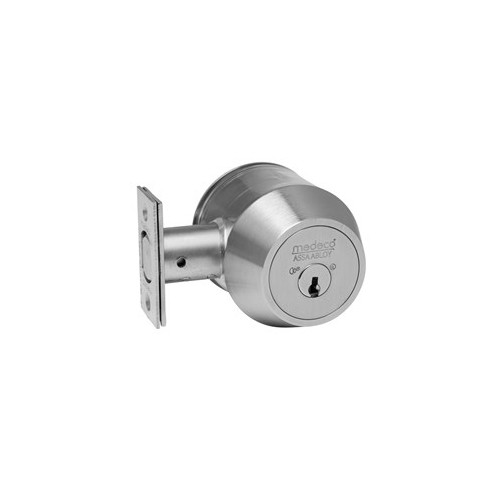

Deadbolts are about strength. Just hold a Medeco® ANSI Grade 1 Maxum® deadbolt in your hand, and you know this is one tough hunk of protection. As tough as a Maxum® deadbolt is on the outside, it’s that smart on the inside. Maxum® deadbolts offer maximum protection with solid-brass construction, along with anti-drilling and anti-prying features.

Benefits:

• Solid brass collar spins under pressure to prevent wrench attacks
• Large thumbturn provides ease of use by physically challenged individuals
• Steel shroud over bolt protects against “ice pick” type attacks
• High security strike plate has a special box design with 2 inch screws that anchor the strike directly to the building structure behind the frame, preventing “kick-in” type attacks
• Hardened steel bolt and bolt throwing mechanism are surrounded by a heavy-gauge tubular steel housing for maximum resistance to crowbar attacks
• Solid brass design is secured with high-tensile steel mounting bolts for maximum resistance against hammer and prying attacks
• A special elevating and rotating pin tumbler design, along with false slots on the bottom pins, mushroom top pins and a sidebar mechanism, work together, to provide superior pick resistance
• Angled cuts on the keys, along with fore and aft positioning.
• Hardened steel inserts, positioned in critical areas of the cylinder, provide a high degree of drill resistance
• UL437 listing provides assurance that cylinders meet universal standards for drill and pick resistance and resistance against other types of forced attack

Applications:

• Bolt mechanism designed to accommodate both mortise and drive-in applications, which provide greater flexibility and ease of installation

Warranty:

• Warranted for two (2) years against manufacturer's defects. See the Medeco® limited warranty for full details

Application

Ideal applications include:

• Office buildings
• Hospitals
• Schools
• Restaurants
• Retail outlets

Specifications

• UL listed
• Grade 1
• Door thickness: 1-3/8" - 2-1/2"
• Faceplate: 1- 1/8''
• Backset: 2-3/4''
• Standard 2-1/8" cross bore and 1" edge bore
• Medeco3 cylinder
• 6-pin cylinder
• Trim: Commercial

Models Available

• 11TC602: Single Cylinder
• 11TC632: Double Cylinder

Finishes Available
