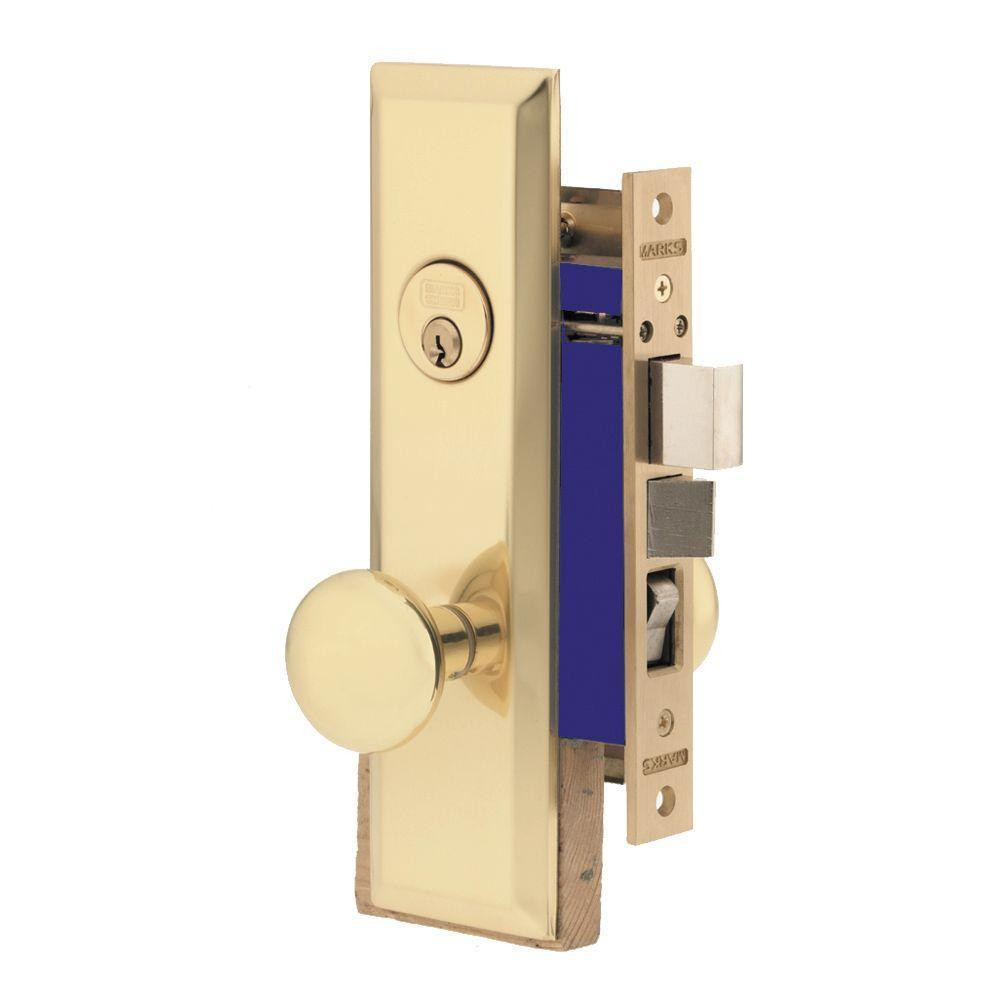

Marks 9 Series Mortise Locksets feature a high pressure cast Zamac body with a baked enamel finish to resist corrosion, cast alloy 1" throw deadbolt for strength, and a flexible face plate that may be installed flat or with a 3 degree bevel. The 9 Series are available with a variety of different knobs, levers, roses and plates making these efficient mortise locksets a great choice for commercial applications when grade 1 fire rated locksets are not required.

Features

• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2" backset
• Lever support springs
• Lock front: 1-1/16" x 7-5/8"
• Dimensions: Ext: 10" H x 2-3/4" W, *Int: 7" H x 2-1/4" W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys

Lock Specifications: 9 Series (2-1/2" Backset)

• Backset: 2-1/2"
• Bolt throw: Cast alloy full 1" throw
• Latch throw: Solid brass 1/2" throw, reversible
• Case: High pressure cast Zamac,
• baked enamel finish
• Front: 1-1/16" x 7-5/8", Flat or 3° bevel
• Hubs: 9/32" on square steel
• with security separator
