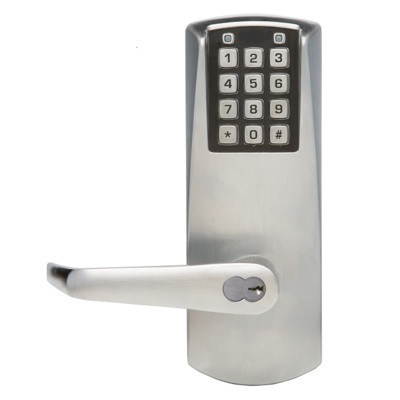

Model:

• E2031LL-26D-41: No key override
• E2031-B-LL-26D-41: Best IC key override (Sold Separate)
• E2031XS-LL-26D-41: Key-in-lever kaba cylinder (Schlage C keyway) included

Features:

• Users - 100 Codes
• Non-handed, pre-assembled for left-hand door installationsåÌ´å_x008d_ easily changed in the fieldLock is easily programmed via keypad without removing lock from the door or with optional E-Plex Standard Software (Version 3.2 or higher)
• Optional Key-in-Lever cylinder in Schlage C Keyway with black Kaba cap
• Small format Best and Equivalents (6 or 7-pin length)

Locking Device Options:

1. Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
2. Mortise: American Standard Mortise, with and without, deadbolt; auto deadbolt available
3. Exit Trim: Compatible with most leading brands of exit devices, including vertical rod options (surface and concealed)

• Locks are programmed via keypad or with optional Microsoft® Excel®-based software
• Lock is powered by batteries located in the outside housing; 3 AA Alkaline batteries provide up to 100,000 cycles

Operation Mode Options:

• PIN access
• Passage - can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
• Lockout

Certification and Standards:

• BHMA Grade 1 Certified
• Americans with Disabilities Act (ADA)
• UL 10C 3-Hour Fire Rating

Environmental:

• Indoor/Outdoor Approved; -31°F (-35°C) to + 151°F (66°C)

Warranty:

• 3-year warranty from date of installation; built-in warranty counter in lock memory
