No wiring, no software, no batteries, no computers, no key or cars. Easy to install, use and mantain.

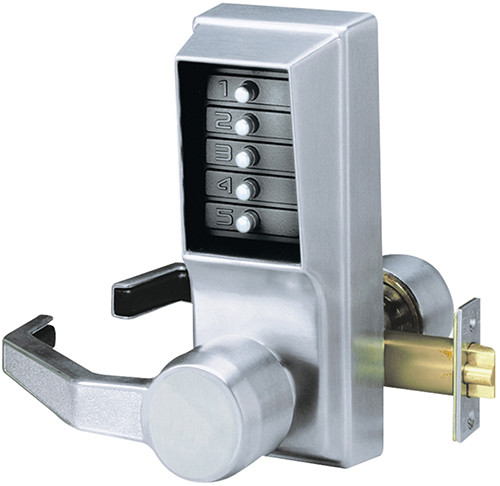

The 1000 family offers a tried and true way to protect your assets. The heavy-duty locks in this family are dependable, reliable, and flexible enough to fit any security need in airports, apartment buildings, college dorms, or manu- facturing plants. Choose from knobs, levers, exit devices, exit PIN code locks, and a variety of other model features in this diverse family of locks. Backed by three-year warranty.

Features:

• Single access code - one easy to manage code for all users
• Lock is easily programmed via keypad without removing lock from the door
• Factory-handed; not field reversible
• Small format interchangeable cores, large format removable cores

Locking Device Options:

Cylindrical : Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors

Operation Mode Options:

• Single credential - access
• Passage (select models) - Allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models)
• Privacy (select models) - Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only when in this mode

Models:

• Kaba Simplex LL or LR1011: Combination Entry Only
• Kaba Simplex LL or LR1021B: Entry and Best IC Key Override (Sold Separate)
• Kaba Simplex LL or LR1031: Combination Entry with Passage
• Kaba Simplex LL or LR1041B: Entry and Best IC Key Override (Sold Separate) with Passage. Conforms to ANSI 156.2, Grade 1; Compliance with D.O.D. 5220.2M

Door Hand:
