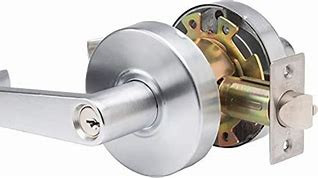

Trans Atlantic LSV Series

ANSI A156.2Grade 2, UL10C and UBC 7.2 for positive pressure

• ANSI A117.1 ADA Barrier-free Accessibility

• C-UBC California Uniform Builders Code -2001

• NFPA-80 National Fire Protection -1999

• NFPA-101 NationalFire Protection - Life Safety-2000

• Certification: UL Listed R14879 ANSI A 156.2 Grade 2

• Door Thickness: 1 3/4" - 1 5/8"

• Backset: 2 3/4"

• Cylinder: Schlage "C" keyway

• Keying: Schlage 6 pin keyed

• Key: 2 six pin Nickel Plated

• Functions: See below

• Latch: 1/2" projection Stainless Steel

• Face: 1 1/8" x 2 1/4" (Optional 3 hour UL R14879)

• Bore: 2 1/8" hole retrofits all cylindrical locksets

• Fits 161 Prep doors

• Strike: ANSI 1 1/4" x 4 7/8"

• Removable Thru-Bolts

• Non-handed / reversible

• Warranty: Lifetime mechanical. 10 year finish.

• Finish: US3, US10B, US26D
