Installation Instructions

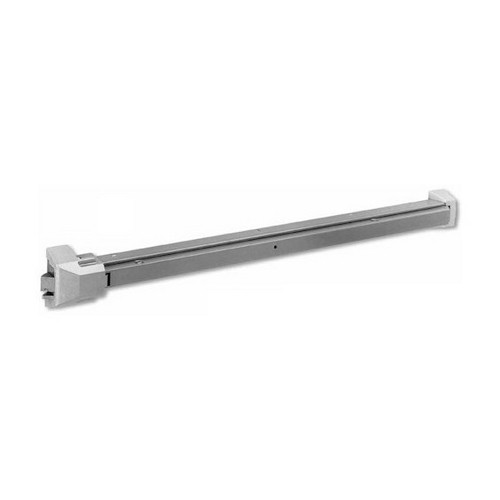

Heavy-duty steel construction and Grade 1 performance, priced for outstanding value. Meets rigurous life safety and security requirements, while offering pleasing aesthetics and trouble-free operation. Designed for high-use and high-abuse situations.

Specifications:

• Heavy-duty steel construction
• 3/4" latchbolt standard
• Low profile and projection for barrier free code compliance
• No projection parts to inhibit egress
• One-point dogging standard
• UL listed
• Non-handed
• Door thickness: 1-3/4"
• Backset: 2-3/4"
• Stile minimum width 5"
• Projection: 2-1/2"
• Latchbolt: 3/4" stainless steel pullman-type with stainless steel deadlocking latch
• Complies with Americans with Disabilities Act
