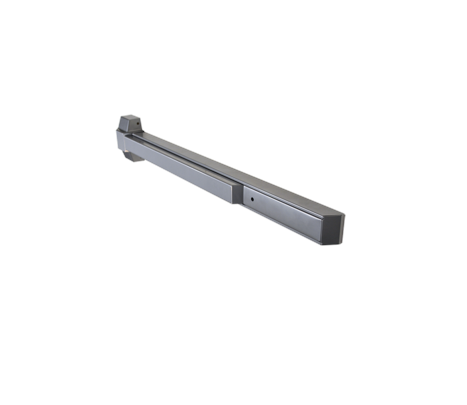

The ED910 and PEC910 exit devices are similar in function, yet different in form. The ED910 is a value exit device for everyday solutions whereas the PEC910 features a one-piece design with a patented permanent end cap – ideal for high traffic or high vandalism areas. Both products are BHMA Grade One certidfied and designed to replace or upgrade existing devices. The Arrow Patented Permanent End CapExit Device offers a precision installationusing the install template, built-in ed cao and slide mounting.

Features:

• Chassis – Stamped steel materials
• Chassis Cover – Cast zinc
• Door Type – Fits 1-3/4" (44.5 mm) doors standard.
• Door Width – For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.
• Stile – 4-1/2" (144.30 mm) minimum
• Mounting – Wood and machine screws furnished standard Handing – Reversible
• Dogging – Hex-type hold down
• Latchbolt – Stainless steel Rail
• Assembly – Powder coated steel, stainless steel optional
• Warranty – Ten year warranty
• Strike – Surfaced applied, nylon coated
• Finish- Aluminum

Certification & Compliance:

• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard
• All exit devices comply with life safety code NFPA 101
